油菜素内酯原位检测电化学免疫传感器

doi:10.12133/j.smartag.SA202311001

摘要/Abstract

摘要：

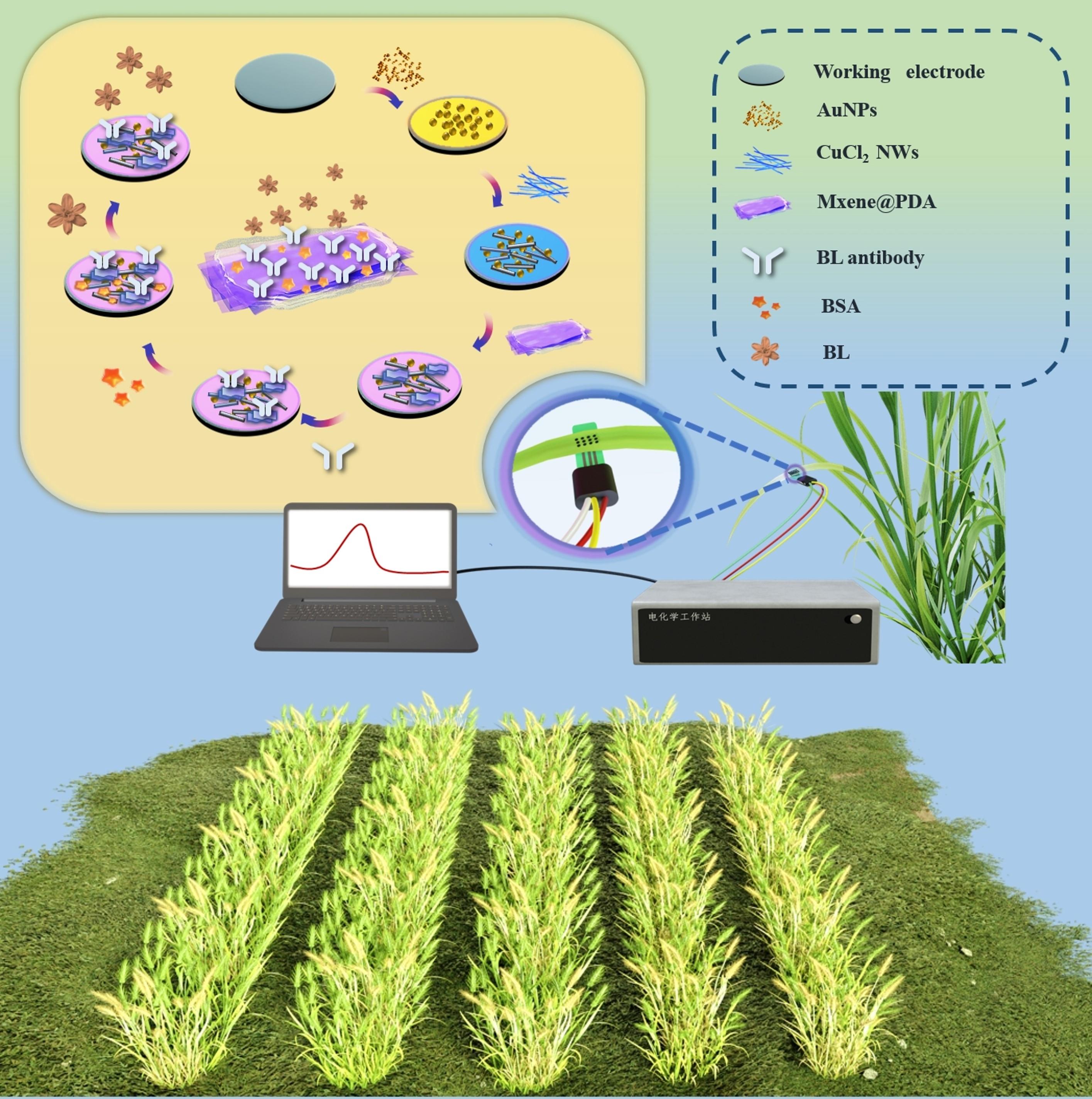

目的/意义 植物激素的调控对于作物生长至关重要。油菜素内酯作为一种重要的植物内源激素，在作物的生长发育、产量提高以及抗逆性增强等方面扮演着举足轻重的角色。传统的油菜素内酯检测方法不仅繁琐耗时，而且难以实现原位、快速检测。为了突破这一技术瓶颈，本研究提出了一种利用丝网印刷（Screen-printed electrode, SPE）电极构建的电化学免疫传感器，旨在实现对油菜素内酯的快速、准确检测。方法首先利用电化学工作站电沉积金纳米颗粒（AuNPs）将其固定在SPE电极表面，然后在电极上滴加氯化铜纳米线（CuCl₂ NWs），氯化铜纳米线不仅可以提高电极的导电性，其中Cu²⁺还可以作为传感器的氧化还原探针。最后选择Mxene和聚多巴胺纳米复合材料（Mxene@PDA）作为SPE电极的修饰材料，因为Mxene具有表面积大和导电性好的优点，可以进一步放大Cu²⁺的信号。但Mxene在空气中很容易被氧化而不稳定。聚多巴胺（Polydopamine, PDA）含有大量的邻苯二酚和氨基等基团，通过多巴胺自聚合后包覆在Mxene的表面，切断氧渗透的路径，使Mxene难以被氧化。Mxene@PDA还可以作为偶联剂在电极表面固定更多的抗体，提高整体的生物相容性。 结果和讨论 传感器具有较宽的线性检测范围：0.1 pg/ml~1 mg/ml，检出限低至0.015 pg/ml （S/N=3）。此外，通过SPE电极对小麦内源的油菜素内酯含量进行离体检测和后续的加标实验，计算出其回收率为98.13%~104.74%。在验证该传感器准确性的同时，也展示了其优越的稳定和灵敏性。与其他油菜素内酯的检测方法相比，本研究中开发的免疫传感器有更加出色的分析性能。除此之外，在对小麦叶片的油菜素内酯的原位检测中，传感器也表现出了极佳的实际应用潜力。结论本研究首次研制了用于原位检测油菜素内酯的电化学免疫传感器，不仅为原位检测植物叶片中的油菜素内酯提供了良好的电化学平台，同时在精准农业中具有巨大的应用潜力。

关键词: 油菜素内酯, 原位检测, 电化学, 金纳米颗粒, 免疫传感器

Abstract:

Objective Brassinolide is an important endogenous plant hormone. In this work, an electrochemical immunosensor for in situ detection of brassinolide was constructed using screen-printed electrode (SPE). Methods Au nanoparticles (AuNPs) were firstly electrodeposited on the surface of SPE electrode by electrochemical workstation, and then CuCl₂nanowires (CuCl₂ NWs) were added to the electrode, which can not only increase the conductivity of the electrode, but also Cu²⁺ can be used as a REDOX probe for the sensor. Finally, Mxene and polydopamine nanocomposite (Mxene@PDA) were selected as the modification materials for SPE electrodes because Mxene has the advantages of large surface area and good electrical conductivity, which can further amplify Cu²⁺ signals. However, Mxene is easily oxidized and unstable in air. Polydopamine (PDA) contains a large number of catechol and amino groups, which are coated on the surface of Mxene after self-polymerization by dopamine, cutting off the path of oxygen penetration, making Mxene difficult to be oxidized. Mxene@PDA can also be used as a coupling agent to fix more antibodies on the electrode surface, improving the overall biocompatibility, and improve the overall biocompatibility. Results and Discussions The sensor has a wide linear detection range: 0.1 pg/mL to 1 mg/mL, and the detection limit was 0.015 pg/ml (S/N=3). In addition, the content of endogenous brassinolide in wheat was detected by SPE electrodes in vitro and the recovery rate was 98.13% to 104.74%.While verifying the accuracy of the sensor, it also demonstrated its superior stability and sensitivity. Besides, the sensor also showed excellent application potential in the in situ detection of brassinosteroids from wheat leaves. Compared with other brassinolide detection methods, the immunosensor developed in this study has better analytical performance. Conclusions An electrochemical immunosensor for in situ detection of brassinolide was developed for the first time, providing a good electrochemical platform for in situ determination of brassinolide in plant leaves, which has great application potential in precision agriculture.

Key words: brassinolide, in situ detection, electrochemical, AuNPs, immunosensor

卫倩, 高原源, 李爱学. 油菜素内酯原位检测电化学免疫传感器[J]. 智慧农业(中英文), 2024, 6(1): 76-88.

WEI Qian, GAO Yuanyuan, LI Aixue. Electrochemical Immunosensor for in Situ Detection of Brassinolide[J]. Smart Agriculture, 2024, 6(1): 76-88.

图/表 10

参考文献 41

1	BAJGUZ A, TRETYN A. The chemical characteristic and distribution of brassinosteroids in plants[J]. Phytochemistry, 2003, 62(7): 1027-1046.
2	WANG X Y, XIONG C F, YE T T, et al. Online polymer monolith microextraction with in situ derivatization for sensitive detection of endogenous brassinosteroids by LC-MS[J]. Microchemical journal, 2020, 158: ID 105061.
3	CLOUSE S D, SASSE J M. BRASSINOSTEROIDS: Essentialregulators of plant growth and development[J]. Annual review of plant physiology and plant molecular biology, 1998, 49: 427-451.
4	TAKATSUTO S. Brassinosteroids: Distribution in plants, bioassays and microanalysts by gas chromatography: Mass spectrometry[J]. Journal of chromatography A, 1994, 658(1): 3-15.
5	LUO X T, CAI B D, YU L, et al. Sensitive determination of brassinosteroids by solid phase boronate affinity labeling coupled with liquid chromatography-tandem mass spectrometry[J]. Journal of chromatography A, 2018, 1546: 10-17.
6	PRADKO A G, LITVINOVSKAYA R P, SAUCHUK A L, et al. A new ELISA for quantification of brassinosteroids in plants[J]. Steroids, 2015, 97: 78-86.
7	CAO L D, ZHANG H, ZHANG H J, et al. Determination of propionyl brassinolide and its impurities by high-performance liquid chromatography with evaporative light scattering detection[J]. Molecules, 2018, 23(3): ID 531.
8	CHENG Y Y, FENG X Z, ZHAN T, et al. A facile indole probe for ultrasensitive immunosensor fabrication toward C-reactive protein sensing[J]. Talanta, 2023, 262: ID 124696.
9	BAKHSHANDEH F, SAHA S, SEN P, et al. A universal bacterial sensor created by integrating a light modulating aptamer complex with photoelectrochemical signal readout[J]. Biosensors and bioelectronics, 2023, 235: ID 115359.
10	LIU D D, LI M J, LI H J, et al. Core-shell Au@Cu₂O-graphene-polydopamine interdigitated microelectrode array sensor for in situ determination of salicylic acid in cucumber leaves[J]. Sensors and actuators B: chemical, 2021, 341: ID 130027.
11	ALI A E, FOUAD O A, MOHAMED G G. Theoretical and experimental approaches to the preparation, characterization and application of a newly synthesized mesoporous Zn-MOF as a selective ionophore for Ni(II) ion in carbon paste electrode matrix[J]. Journal of molecular structure, 2023, 1285: ID 135475.
12	JIANG H M, WANG Z G, YANG Q, et al. A novel MnO₂/Ti₃C₂T _x MXene nanocomposite as high performance electrode materials for flexible supercapacitors[J]. Electrochimica acta, 2018, 290: 695-703.
13	WANG W D, JIANG D M, CHEN X, et al. A sandwich-like nano-micro LDH-MXene-LDH for high-performance supercapacitors[J]. Applied surface science, 2020, 515: ID 145982.
14	TU X L, GAO F, MA X, et al. Mxene/carbon nanohorn/β-cyclodextrin-Metal-organic frameworks as high-performance electrochemical sensing platform for sensitive detection of carbendazim pesticide[J]. Journal of hazardous materials, 2020, 396: ID 122776.
15	JIANG H M, WANG Z G, YANG Q, et al. Ultrathin Ti₃C₂T_x (MXene) nanosheet-wrapped NiSe₂ octahedral crystal for enhanced supercapacitor performance and synergetic electrocatalytic water splitting[J]. Nano-micro letters, 2019, 11(1): 1-14.
16	XIANG Y C, FANG L A, WU F, et al. 3D crinkled alk-Ti₃C₂ MXene based flexible piezoresistive sensors with ultra-high sensitivity and ultra-wide pressure range[J]. Advanced materials technologies, 2021, 6(6): ID 2001157.
17	LI M H, FANG L, ZHOU H, et al. Three-dimensional porous MXene/NiCo-LDH composite for high performance non-enzymatic glucose sensor[J]. Applied surface science, 2019, 495: ID 143554.
18	ZHU Y C, RAJOUÂ K, LE VOT S, et al. Modifications of MXene layers for supercapacitors[J]. Nano energy, 2020, 73: ID 104734.
19	WAN B L, LIU N N, ZHANG Z, et al. Water-dispersible and stable polydopamine coated cellulose nanocrystal-MXene composites for high transparent, adhesive and conductive hydrogels[J]. Carbohydrate polymers, 2023, 314: ID 120929.
20	DENG Z M, LI L L, TANG P P, et al. Controllable surface-grafted MXene inks for electromagnetic wave modulation and infrared anti-counterfeiting applications[J]. ACS nano, 2022, 16(10): 16976-16986.
21	LEE G S, YUN T, KIM H, et al. Mussel inspired highly aligned Ti(3)C(2)T(x) MXene film with synergistic enhancement of mechanical strength and ambient stability[J]. ACS nano, 2020, 14(9): 11722-11732.
22	LIU C J, YANG W, MIN X, et al. An enzyme-free electrochemical immunosensor based on quaternary metallic/nonmetallic PdPtBP alloy mesoporous nanoparticles/MXene and conductive CuCl₂ nanowires for ultrasensitive assay of kidney injury molecule-1[J]. Sensors and actuators B: chemical, 2021, 334: ID 129585.
23	YAN B B, ZHOU M, YU Y Y, et al. Orderly Self-Stacking a High-Stability coating of MXene@Polydopamine hybrid onto textiles for multifunctional personal thermal management[J]. Composites part A: Applied science and manufacturing, 2022, 160: ID 107038.
24	HE X L, WU J X, CHEN Y, et al. A trace amount of MXene@PDA nanosheets for low-temperature zinc phosphating coatings with superb corrosion resistance[J]. Applied surface science, 2022, 603: ID 154455.
25	CHEN R H, CHENG Y Y, WANG P, et al. Facile synthesis of a sandwiched Ti₃C₂T _x MXene/nZVI/fungal hypha nanofiber hybrid membrane for enhanced removal of Be(II) from Be(NH₂)₂ complexing solutions[J]. Chemical engineering journal, 2021, 421: ID 129682.
26	PARK T H, YU S, KOO M, et al. Shape-adaptable 2D titanium carbide (MXene) heater[J]. ACS nano, 2019, 13(6): 6835-6844.
27	TIAN Y Q, QIU W J, XIE Y H, et al. Melatonin as an accelerating agent for phosphate chemical conversion coatings on mild steel with enhanced corrosion resistance[J]. Journal of the electrochemical society, 2020, 167(10): ID 101505.
28	DUAN Y Y, WANG N, HUANG Z X, et al. Electrochemical endotoxin aptasensor based on a metal-organic framework labeled analytical platform[J]. Materials science and engineering: C, 2020, 108: ID 110501.
29	ZHANG Z M, ZHANG Y, TAN W, et al. Preparation of styrene-co-4-vinylpyridine magnetic polymer beads by microwave irradiation for analysis of trace 24-epibrassinolide in plant samples using high performance liquid chromatography[J]. Journal of chromatography A, 2010, 1217(42): 6455-6461.
30	PAN J L, HU Y L, LIANG T A, et al. Preparation of solid-phase microextraction fibers by in-mold coating strategy for derivatization analysis of 24-epibrassinolide in pollen samples[J]. Journal of chromatography A, 2012, 1262: 49-55.
31	SWACZYNOVÁ J, NOVÁK O, HAUSEROVÁ E, et al. New techniques for the estimation of naturally occurring brassinosteroids[J]. Journal of plant growth regulation, 2007, 26(1): 1-14.
32	TARKOWSKÁ D, NOVÁK O, OKLESTKOVA J, et al. The determination of 22 natural brassinosteroids in a minute sample of plant tissue by UHPLC-ESI-MS/MS[J]. Analytical and bioanalytical chemistry, 2016, 408(24): 6799-6812.
33	LIU X, ZHONG Y, LI W L, et al. Development and comprehensive SPE-UHPLC-MS/MS analysis optimization, comparison, and evaluation of 2, 4-epibrassinolide in different plant tissues[J]. Molecules, 2022, 27(3): ID 831.
34	WANG Y K, BAI J F, WANG P, et al. Comparative transcriptome analysis identifies genes involved in the regulation of the pollen cytoskeleton in a genic male sterile wheat line[J]. Plant growth regulation, 2018, 86(1): 133-147.
35	JANECZKO A, BIESAGA-KOŚCIELNIAK J, OKLEŠT'KOVÁ J, et al. Role of 24-epibrassinolide in wheat production: Physiological effects and uptake[J]. Journal of agronomy and crop science, 2010, 196(4): 311-321.
36	AN X L, TAN T Y, ZHANG X Y, et al. Effects of light intensity on endogenous hormones and key enzyme activities of anthocyanin synthesis in blueberry leaves[J]. Horticulturae, 2023, 9(6): ID 618.
37	JANECZKO A, SWACZYNOVÁ J. Endogenous brassinosteroids in wheat treated with 24-epibrassinolide[J]. Biologia plantarum, 2010, 54(3): 477-482.
38	ANURADHA S, RAO S SRAM. Application of brassinosteroids to rice seeds (Oryza sativa L.) reduced the impact of salt stress on growth, prevented photosynthetic pigment loss and increased nitrate reductase activity[J]. Plant growth regulation, 2003, 40(1): 29-32.
39	LU X, LIU R, LIU H, et al. Experimental evidence from Suaeda glauca explains why the species is not naturally distributed in non-saline soils [J]. Science of the total environment, 2022, 817: ID 153028.
40	WANG P, LI X Y, TIAN L, et al. Low salinity promotes the growth of broccoli sprouts by regulating hormonal homeostasis and photosynthesis[J]. Horticulture, environment, and biotechnology, 2019, 60(1): 19-30.
41	AHMAD H, HAYAT S, ALI M, et al. Regulation of Growth and Physiological traits of Cucumber (Cucumis sativus L.) through various levels of 28-Homobrassinolide under salt stress conditions[J]. Canadian journal of plant science, 2017: CJPS-2016.

Methods	Linear range	Limit of detection	Recovery	Refs
St-co-4-VP magnetic polymer beads -HPLC	10~100 µg/L	6.5 µg/L	72.3%~90.0%	［29］
SPME-LVI-HPLC	0.5~20 µg/L	0.13 µg/L	77.8%~104%	［30］
HPLC-ELSD	4.3~543.3 mg/L	1.3 mg/L	98.03%~100.53%	［7］
LC-ESI-MS	0.1~50 pmol/L	75 fmol/L	25%~32%	［31］
UHPLC-MS/MS	0.01~50 pmol/L	4.16 fmol/L	15%~96%	［32］
SPE-UHPLC-MS/MS	0.7~104 μg/kg	0.11μg/kg	84.0%~116.3%	［33］
PMME-ISD-LC-MS	0.5~1 000 pg/mL	0.1 pg/mL	82.3%~119.1%	［2］
Electrochemistry	0.1~10⁹pg/mL	0.015 pg/mL	98.13%~104.74%	This work

Samples/pg/mL	Added/pg/mL	Found/pg/mL	RSD/%	Recovery/%
0.71±0.002 8	1	1.68±0.04	2.6	98.13
	10	11.22±0.34	3.1	104.74
	100	105.42±2.95	2.8	104.67
	1 000	1 037.67±56.03	5.4	103.69

Sample	Control	100 mM NaCl
Sample	Sensor /pg/mL	Sensor/pg/mL
1	9.16	17.85
2	9.29	13.75
3	8.07	19.35
4	7.15	18.91
5	6.34	19.33
6	8.59	16.15
7	6.79	14.43
8	6.06	18.91
9	9.59	17.45
10	10.66	20.85
Average	8.17±1.54	17.70±2.29
Significance level	0.000**	0.000**
