长江经济带智慧农场发展的时空特征及驱动因子研究

doi:10.12133/j.smartag.SA202404005

摘要/Abstract

摘要：

［目的/意义］ 为提炼区域智慧农业高质量发展的典范案例，并为国家智慧农业事业持续进步贡献策略，深入探究长江经济带智慧农场时空特征及关键驱动因子。 ［方法］ 基于2014—2023年11省（市）数据，用核密度分析、空间自相关及标准差椭圆方法全面剖析长江经济带智慧农场时空分异特征，并用地理探测器从7个维度考察关键因子及其交互作用。 ［结果和讨论］ 长江经济带智慧农场数量10年间稳步增长，2016年为重要转折点；空间布局呈分散集聚特征，以H-L型和L-H型集聚为主，分布省份略显繁杂；技术创新是时空分布格局形成的首要关键因素，因子解释度为0.311 1，与其他指标交互之后仍保持核心驱动地位。 ［结论］ 长江经济带智慧农场发展势头向好，子区域智慧农场的发展增速与水平呈“下游＞中游＞上游”的差异化特征；整体空间分布均衡，子区域分布均衡程度为“中游（湖北、湖南、江西3省均衡）＞下游（安徽主导）＞上游（四川，独占鳌头）”，智慧农场选址覆盖面持续扩张并形成“东北—西南”的横向扩散格局；时空分异格局形成是多因子综合作用的结果，因子解释力为：技术创新＞城镇化＞农业机械化＞人力资本＞互联网基础＞产业依赖＞专项财政支持，且因子交互作用时影响力会进一步得到强化。

关键词: 智慧农场, 新质生产力, 时空特征, 驱动因子, 高质量发展, 长江经济带

Abstract:

[Objective] In order to summarize exemplary cases of high-quality development in regional smart agriculture and contribute strategies for the sustainable advancement of the national smart agriculture cause, the spatiotemporal characteristics and key driving factors of smart farms in the Yangtze River Economic Belt were studied. [Methods] Based on data from 11 provinces (municipalities) spanning the years 2014 to 2023, a comprehensive analysis was conducted on the spatio-temporal differentiation characteristics of smart farms in the Yangtze River Economic Belt using methods such as kernel density analysis, spatial auto-correlation analysis, and standard deviation ellipse. Including the overall spatial clustering characteristics, high-value or low-value clustering phenomena, centroid characteristics, and dynamic change trends. Subsequently, the geographic detector was employed to identify the key factors driving the spatio-temporal differentiation of smart farms and to discern the interactions between different factors. The analysis was conducted across seven dimensions: special fiscal support, industry dependence, human capital, urbanization, agricultural mechanization, internet infrastructure, and technological innovation. [Results and Discussions] Firstly, in terms of temporal characteristics, the number of smart farms in the Yangtze River Economic Belt steadily increased over the past decade. The year 2016 marked a significant turning point, after which the growth rate of smart farms had accelerated noticeably. The development of the upper, middle, and lower reaches exhibited both commonalities and disparities. Specifically, the lower sub-regions got a higher overall development level of smart farms, with a fluctuating upward growth rate; the middle sub-regions were at a moderate level, showing a fluctuating upward growth rate and relatively even provincial distribution; the upper sub-regions got a low development level, with a stable and slow growth rate, and an unbalanced provincial distribution. Secondly, in terms of spatial distribution, smart farms in the Yangtze River Economic Belt exhibited a dispersed agglomeration pattern. The results of global auto-correlation indicated that smart farms in the Yangtze River Economic Belt tended to be randomly distributed. The results of local auto-correlation showed that the predominant patterns of agglomeration were H-L and L-H types, with the distribution across provinces being somewhat complex; H-H type agglomeration areas were mainly concentrated in Sichuan, Hubei, and Anhui; L-L type agglomeration areas were primarily in Yunnan and Guizhou. The standard deviation ellipse results revealed that the mean center of smart farms in the Yangtze River Economic Belt had shifted from Anqing city in Anhui province in 2014 to Jingzhou city in Hubei province in 2023, with the spatial distribution showing an overall trend of shifting southwestward and a slow expansion toward the northeast and south. Finally, in terms of key driving factors, technological innovation was the primary critical factor driving the formation of the spatio-temporal distribution pattern of smart farms in the Yangtze River Economic Belt, with a factor explanatory degree of 0.311 1. Moreover, after interacting with other indicators, it continued to play a crucial role in the spatio-temporal distribution of smart farms, which aligned with the practical logic of smart farm development. Urbanization and agricultural mechanization levels were the second and third largest key factors, with factor explanatory degrees of 0.292 2 and 0.251 4, respectively. The key driving factors for the spatio-temporal differentiation of smart farms in the upper, middle, and lower sub-regions exhibited both commonalities and differences. Specifically, the top two key factors driver identification in the upper region were technological innovation (0.841 9) and special fiscal support (0.782 3). In the middle region, they were technological innovation (0.619 0) and human capital (0.600 1), while in the lower region, they were urbanization (0.727 6) and technological innovation (0.425 4). The identification of key driving factors and the detection of their interactive effects further confirmed that the spatio-temporal distribution characteristics of smart farms in the Yangtze River Economic Belt were the result of the comprehensive action of multiple factors. [Conclusions] The development of smart farms in the Yangtze River Economic Belt is showing a positive momentum, with both the total number of smart farms and the number of sub-regions experiencing stable growth. The development speed and level of smart farms in the sub-regions exhibit a differentiated characteristic of "lower reaches > middle reaches > upper reaches". At the same time, the overall distribution of smart farms in the Yangtze River Economic Belt is relatively balanced, with the degree of sub-regional distribution balance being "middle reaches (Hubei province, Hunan province, Jiangxi province are balanced) > lower reaches (dominated by Anhui) > upper reaches (Sichuan stands out)". The coverage of smart farm site selection continues to expand, forming a "northeast-southwest" horizontal diffusion pattern. In addition, the spatio-temporal characteristics of smart farms in the Yangtze River Economic Belt are the result of the comprehensive action of multiple factors, with the explanatory power of factors ranked from high to low as follows: Technological innovation > urbanization > agricultural mechanization > human capital > internet infrastructure > industry dependence > special fiscal support. Moreover, the influence of each factor is further strengthened after interaction. Based on these conclusions, suggestions are proposed to promote the high-quality development of smart farms in the Yangtze River Economic Belt. This study not only provides a theoretical basis and reference for the construction of smart farms in the Yangtze River Economic Belt and other regions, but also helps to grasp the current status and future trends of smart farm development.

Key words: smart farm, new-quality productivity, spatial-temporal characteristics, driving factor, high-quality development, Yangtze River Economic Belt

中图分类号:

高群, 王宏杨, 陈诗瑶. 长江经济带智慧农场发展的时空特征及驱动因子研究[J]. 智慧农业(中英文), 2024, 6(6): 168-179.

GAO Qun, WANG Hongyang, CHEN Shiyao. Research on the Spatio-temporal Characteristics and Driving Factors of Smart Farm Development in the Yangtze River Economic Belt[J]. Smart Agriculture, 2024, 6(6): 168-179.

图/表 10

表1

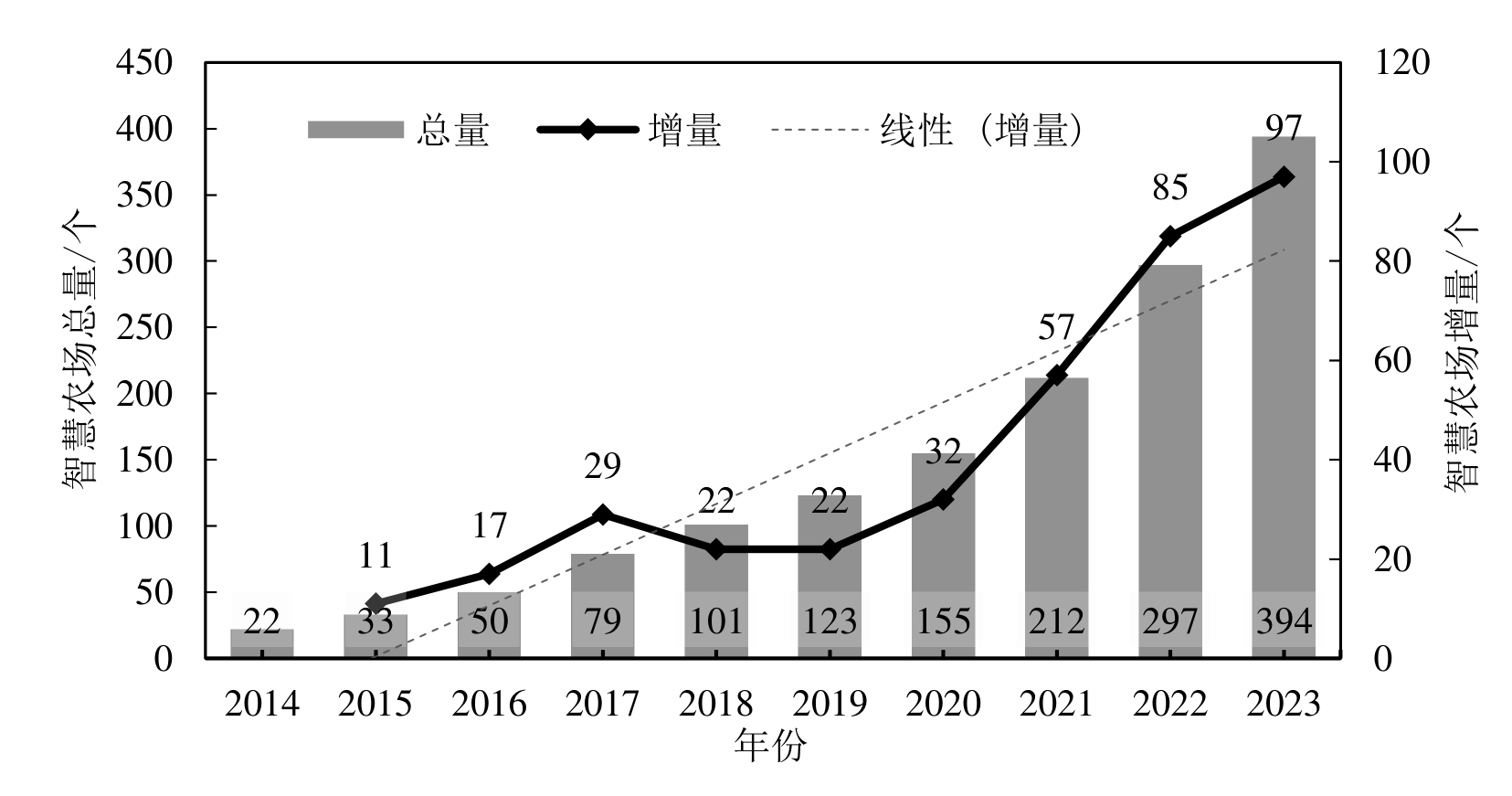

图1

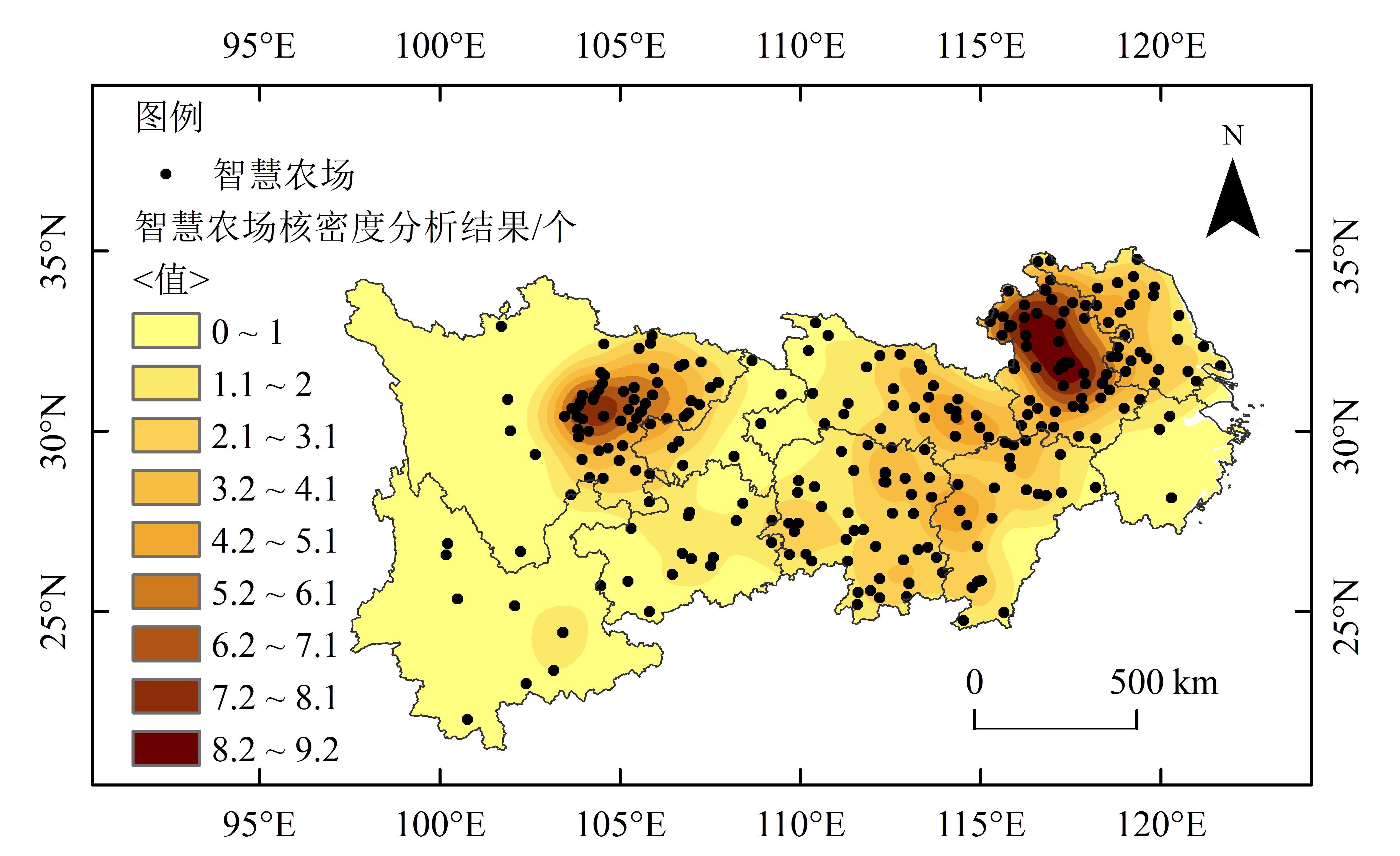

图2

图3

表2

长江经济带智慧农场全局自相关分析结果

指标	长江经济带整体（2014—2023年）										子区域（2023年）
指标	2014	2015	2016	2017	2018	2019	2020	2021	2022	2023	上游	中游	下游
Moran $I$ 指数	‒0.035 9	‒0.070 6	‒0.001 1	‒0.043 9	‒0.088 9	‒0.092 4	‒0.109 3	‒0.157 0	‒0.141 5	‒0.171 3	0.133 0	—	‒0.186 5
预期指数	‒0.100 0	‒0.100 0	‒0.100 0	‒0.100 0	‒0.100 0	‒0.100 0	‒0.100 0	‒0.100 0	‒0.100 0	‒0.100 0	‒0.333 3	—	‒0.333 3
方差	0.037 2	0.038 5	0.038 5	0.036 7	0.037 1	0.036 7	0.035 9	0.036 3	0.037 7	0.036 0	0.185 7	0	0.081 8
$Z$ 得分	‒0.332 2	‒0.869 1	‒0.5038	‒0.292 9	‒0.057 8	‒0.039 8	‒0.048 9	‒0.299 2	‒0.214 0	‒0.375 8	1.082 3	—	0.513 4
$P$ 值	0.739 7	0.384 8	0.614 4	0.769 6	0.953 9	0.9683	0.961 0	0.764 8	0.830 5	0.707 0	0.279 1	—	0.607 7
分布模式	随机	随机	随机	随机	随机	随机	随机	随机	随机	随机	随机	随机	随机

表2

表3

图4

表4

表5

智慧农场时空分异关键驱动因子判别结果

维度	调查指标	整体		上游		中游		下游
维度	调查指标	$q$ 统计量	$P$ 值	$q$ 统计量	$P$ 值	$q$ 统计量	$P$ 值	$q$ 统计量	$P$ 值
专项财政支持	农业生产设备财政支出专项	0.119 1	0.016 4	0.782 3	0.000 0	0.128 5	0.393 2	0.404 2	0.008 8
产业依赖	农业增加值	0.161 6	0.002 2	0.625 5	0.000 0	0.256 5	0.302 8	0.396 7	0.006 0
人力资本	人力资本水平	0.231 9	0.000 0	0.336 0	0.017 4	0.600 1	0.000 0	0.187 2	0.173 6
城镇化	城镇化水平	0.292 2	0.000 0	0.401 6	0.008 9	0.570 6	0.003 3	0.727 6	0.000 0
农业机械化	农业机械动力	0.251 4	0.000 0	0.280 6	0.044 7	0.300 5	0.103 0	0.503 4	0.004 6
互联网基础	互联网覆盖度	0.196 4	0.000 0	0.380 9	0.011 1	0.520 2	0.009 8	0.061 5	0.721 7
技术创新	专利授权量	0.311 1	0.000 0	0.841 9	0.000 0	0.619 0	0.003 5	0.425 4	0.014 0

表5

表6

参考文献 39

1	洪银兴, 杨玉珍. 现代化新征程中农业发展范式的创新——兼论中国发展经济学的创新研究[J]. 管理世界, 2023, 39(5): 1-8, 9, 53.
	HONG Y X, YANG Y Z. The innovation of agricultural development paradigm in the new journey of modernization: On the innovative research of China's development economics[J]. Journal of management world, 2023, 39(5): 1-8, 9, 53.
2	王君婵, 洪俐, 朱少龙, 等. 基于深度学习的病害识别方法研究[J]. 农业展望, 2023, 19 (8): 90-99.
	WANG J C, HONG L, ZHU S L, et al. Research on disease recognition method based on deep learning[J]. Agricultural outlook, 2023, 19 (8): 90-99.
3	张延龙, 王明哲, 廖永松. 保障国家粮食安全视角下的稻米产业化:基于2 225家稻米企业的监测数据[J]. 改革, 2022(11): 119-129.
	ZHANG Y L, WANG M Z, LIAO Y S. Rice industrialization from the perspective of ensuring national food security: Based on monitoring data of 2 225 rice enterprises[J]. Reform, 2022(11): 119-129.
4	MAHFUZ S, MUN H S, DILAWAR M A, et al. Applications of smart technology as a sustainable strategy in modern swine farming[J]. Sustainability, 2022, 14(5): ID 2607.
5	张天骄, 张子超, 黄堃, 等. 融合关联挖掘与D-ANP的数字经济下消费潜力多模态评估模型构建[J]. 农业图书情报学报, 2023, 35(2): 16-29.
	ZHANG T J, ZHANG Z C, HUANG K, et al. Construction of multimodal assessment model of consumption potential in the digital economy integrating association rule mining algorithm with D-ANP[J]. Journal of library and information science in agriculture, 2023, 35(2): 16-29.
6	WANG X R. Spicy red in Shrimp town: Smart farming and settler colonialism in Guizhou province[J]. New media & society, 2023, 25(8): 1888-1912.
7	ADAMIDES G. A review of climate-smart agriculture applications in Cyprus[J]. Atmosphere, 2020, 11(9): ID 898.
8	何可, 吴昊, 曾杨梅. "双碳"目标下的智慧农业发展[J]. 华中农业大学学报, 2023, 42(3): 10-17.
	HE K, WU H, ZENG Y M. Development of smart agriculture with goals of carbon peaking and carbon neutrality[J]. Journal of Huazhong agricultural university, 2023, 42(3): 10-17.
9	VAN DER BURG S, BOGAARDT M J, WOLFERT S. Ethics of smart farming: Current questions and directions for responsible innovation towards the future[J]. NJAS: Wageningen journal of life sciences, 2019, 90/91(1): 1-10.
10	YANG X, SHU L, CHEN J N, et al. A survey on smart agriculture: Development modes, technologies, and security and privacy challenges[J]. CAA journal of automatica sinica, 2021, 8(2): 273-302.
11	殷浩栋, 霍鹏, 肖荣美, 等. 智慧农业发展的底层逻辑、现实约束与突破路径[J]. 改革, 2021(11): 95-103.
	YIN H D, HUO P, XIAO R M, et al. The under lying logic, practical constraints and break through path of the development of smart agriculture[J]. Reform, 2021(11): 95-103.
12	ANUBHAV K, AGARWAL M, AASHISH K. Smart farming for future: A structural relation analysis of attitude, facilitating condition, economic benefit and government support[J]. Technology analysis & strategic management, 2023: 1-15.
13	何睦, 王翔. 农业数字化转型发展: 重要性、障碍及实施路径[J]. 贵州社会科学, 2023(9): 161-168.
	HE M, WANG X. Agricultural digital transformation and development: Importance, obstacles and implementation path[J]. Guizhou social sciences, 2023(9): 161-168.
14	刘长全. 关于智慧农业的理论思考: 发展模式、潜在问题与推进策略[J]. 经济纵横, 2023(8): 63-70.
	LIU C Q. Theoretical thinking on smart agriculture: Development modes, potential problems, and promotion measures[J]. Economic review journal, 2023(8): 63-70.
15	SHI L, SHI G C, QIU H G. General review of intelligent agriculture development in China[J]. China agricultural economic review, 2019, 11(1): 39-51.
16	TAKAGI C, PURNOMO S H, KIM M K. Adopting smart agriculture among organic farmers in Taiwan[J]. Asian journal of technology innovation, 2021: 29(2): 180-195.
17	MARESCOTTI M E, DEMARTINI E, FILIPPINI R, et al. Smart farming in mountain areas: Investigating livestock farmers' technophobia and technophilia and their perception of innovation[J]. Journal of rural studies, 2021, 86: 463-472.
18	牟少岩, 丁慧媛, 郑满生, 等. 智慧农业革命影响及对策研究[J]. 农业经济问题, 2022, 43(9): 111-117.
	MU S Y, DING H Y, ZHENG M S, et al. Agricultural management revolution triggered by smart agriculture: Content, influence and development countermeasures[J]. Issues in agricultural economy, 2022, 43(9): 111-117.
19	高群, 陈衡洋, 张新亮. 中国农业绿色发展政策的历史演变与焦点特征——基于注意力视角的文本分析[J]. 资源科学, 2023, 45(12): 2433-2448.
	GAO Q, CHEN H Y, ZHANG X L. Evolution and focal features of China's agricultural green development policies: Text analysis based on attention perspective[J]. Resources science, 2023, 45(12): 2433-2448.
20	李伟嘉, 苏昕. 数字乡村背景下智慧农业的场景、效应与路径[J]. 科学管理研究, 2023, 41(3): 140-150.
	LI W J, SU X. The scene, effect and path of smart agriculture under the background of digital countryside[J]. Scientific management research, 2023, 41(3): 140-150.
21	赵春江, 范贝贝, 李瑾, 等. 农业机器人技术进展、挑战与趋势[J]. 智慧农业(中英文), 2023, 5(4): 1-15.
	ZHAO C J, FAN B B, LI J, et al. Agricultural robots: Technology progress, challenges and trends[J]. Smart agriculture, 2023, 5(4): 1-15.
22	李予阳. 长江经济带绿色发展积蓄新动能[EB/OL]. [2020-10-26].
23	国家统计局. 中华人民共和国2023年国民经济和社会发展统计公报[R/OL]. [2024-02-29].
24	天眼查[EB/OL]. [2024-05-03].
25	CAO J N, SOLANGI Y A. Analyzing and prioritizing the barriers and solutions of sustainable agriculture for promoting sustainable development goals in China[J]. Sustainability, 2023, 15(10): ID 8317.
26	李扬, 盛科荣, 卢超. 农业产业化发展的区域差异及影响因素[J]. 江苏农业学报, 2021, 37(3): 763-771.
	LI Y, SHENG K R, LU C. Regional differences and influencing factors in the development of agricultural industrialization[J]. Jiangsu journal of agricultural sciences, 2021, 37(3): 763-771.
27	龙少波, 张梦雪. 中国农业全要素生产率的再测算及影响因素——从传统迈向高质量发展[J]. 财经问题研究, 2021(8): 40-51.
	LONG S B, ZHANG M X. Recalculation and influencing factors of China's agricultural total factor productivity: From tradition to high-quality development[J]. Research on financial and economic issues, 2021(8): 40-51.
28	孟晓, 田明华, 于法稳. 山东省农业现代化发展水平时空演化及影响因素研究[J]. 中国生态农业学报(中英文), 2023, 31(8): 1194-1207.
	MENG X, TIAN M H, YU F W. Spatiotemporal evolution and influencing factors of the development level of agricultural modernization in Shandong province[J]. Chinese journal of eco-agriculture, 2023, 31(8): 1194-1207.
29	宁发金, 鲁茸拉木, 杜发春. 云南省县域农业生态效率时空分异及其影响因素[J]. 中国农业资源与区划, 2024, 45(2): 49-61.
	NING F J, LU R, DU F C. Spatial-temporal differentiation and influencing factors of agricultural ecological efficiency in counties of Yunnan province[J]. Chinese journal of agricultural resources and regional planning, 2024, 45(2): 49-61.
30	张启文, 王思怡, 刘畅. 长江经济带农业现代化与农业保险协调发展及影响因素研究[J]. 长江流域资源与环境, 2024, 33(3): 646-657.
	ZHANG Q W, WANG S Y, LIU C. Coordinated development between agricultural modernization and agricultural insurance and the influencing factors in the Yangtze River Economic Belt[J]. Resources and environment in the Yangtze Basin, 2024, 33(3): 646-657.
31	李颖慧, 游星, 陈红. 我国现代农业与现代服务业融合发展时空特征与影响因素研究[J/OL]. 中国农业资源与区划, 2023: 1-17. (2023-06-09)[2024-02-12].
	LI Y H, YOU X, CHEN H. Research on spatiotemporal characteristics and influencing factors of the integrated development of modern agriculture and modern service industry in China[J/OL]. Chinese journal of agricultural resources and regional planning, 2023: 1-17. (2023-06-09) [2024-02-12].
32	马红坤, 毛世平, 陈雪. 小农生产条件下智慧农业发展的路径选择——基于中日两国的比较分析[J]. 农业经济问题, 2020, 41(12): 87-98.
	MA H K, MAO S P, CHEN X. Exploring the development path of smart agriculture in China: Based on the comparative analysis between China and Japan[J]. Issues in agricultural economy, 2020, 41(12): 87-98.
33	林洁. 为新农人打造"硬核"装备[EB/OL]. [2021-11-23].
34	胡霜, 王火根, 肖丽香. 数字技术赋能农业绿色发展: 内在机制与典型实践[J]. 中国工程科学, 2024, 26(2): 150-159.
	HU S, WANG H G, XIAO L X. Digital technology enables agricultural green development: Internal mechanism and typical practice[J]. Strategic study of CAE, 2024, 26(2): 150-159.
35	杨头平, 钟桂珍. 中国农业农村现代化的时空演变特征及影响因素分析[J]. 统计与决策, 2024, 40(5): 94-99.
	YANG T P, ZHONG G Z. Spatiotemporal evolution characteristics and influencing factors of China's agricultural and rural modernization[J]. Statistics & decision, 2024, 40(5): 94-99.
36	王劲峰, 徐成东. 地理探测器: 原理与展望[J]. 地理学报, 2017, 72(1): 116-134.
	WANG J F, XU C D. Geodetector: Principle and prospective[J]. Acta geographica sinica, 2017, 72(1): 116-134.
37	赵春江, 李瑾, 冯献. 面向2035年智慧农业发展战略研究[J]. 中国工程科学, 2021, 23(4): 1-9.
	ZHAO C J, LI J, FENG X. Development strategy of smart agriculture for 2035 in China[J]. Strategic study of CAE, 2021, 23(4): 1-9.
38	XIE L, LUO B L, ZHONG W J. How are smallholder farmers involved in digital agriculture in developing countries: A case study from China[J]. Land, 2021, 10(3): ID 245
39	郭宇, 姚亦锋, 王振波, 等. 基于主体功能区的长江经济带绿色发展评价与问题区域识别[J]. 生态学报, 2023, 43(7): 2569-2582.
	GUO Y, YAO Y F, WANG Z B, et al. Green development evaluation and problem areas identification of the Yangtze River Economic Belt from the perspective of major function oriented zones[J]. Acta ecologica sinica, 2023, 43(7): 2569-2582.

维度	调查指标	指标说明
专项财政支持	农业生产设备财政支出专项/%	农业生产设备购置补贴占农业财政总支出的比重
产业依赖	农业增加值/%	第一产业增加值占地区生产总值的比重
人力资本	人力资本水平/%	受高等教育人数占地区6岁以上人口比重
城镇化	城镇化水平/%	城镇人口占地区总人口的比重
农业机械化	农业机械动力/（kW/hm²）	农业机械总动力/农作物总播种面积
互联网基础	互联网覆盖度/（个/人）	互联网宽带接入端口数与地区总人数的比值
技术创新	专利授权量/项	国内专利授权总量

年份	集聚类型
年份	H-H型	L-L型	H-L型	L-H型
2014	皖2；鄂1	湘3；黔2	赣1；鄂1；黔1；滇2	皖4；鄂2
2015	皖*2	湘2；黔2	赣1；鄂1；黔1；滇2	苏1；皖5；鄂*2
2016	皖2；鄂1	湘2；黔2	赣1；鄂1；黔1；滇2	苏1；皖5；鄂*2
2017	苏1；皖4	沪1；黔1；滇*1	鄂1；黔1；滇*2	皖5；赣3；鄂*2
2018	苏1；皖4	滇*5	鄂1；湘1；黔1；滇2	浙江2；皖5；赣2；鄂1
2019	皖4；川1	渝1；滇7	鄂1；湘1；黔1；滇1	皖5；赣2；鄂1；四川1
2020	皖6；川3	渝1；黔1；滇*7	鄂1；湘1；黔2；滇2	皖3；鄂1；川*2
2021	皖6；川1	渝1；川2；黔2；滇11	鄂1；黔1；滇*1	皖3；鄂1；川*1
2022	苏1；皖5；川*4	渝1；川2；黔1；滇11	鄂1；黔3；滇*2	皖3；鄂1；川*2
2023	皖8；川3	渝1；川2；黔4；滇10	苏1；滇1	苏1；皖3；鄂1；川1

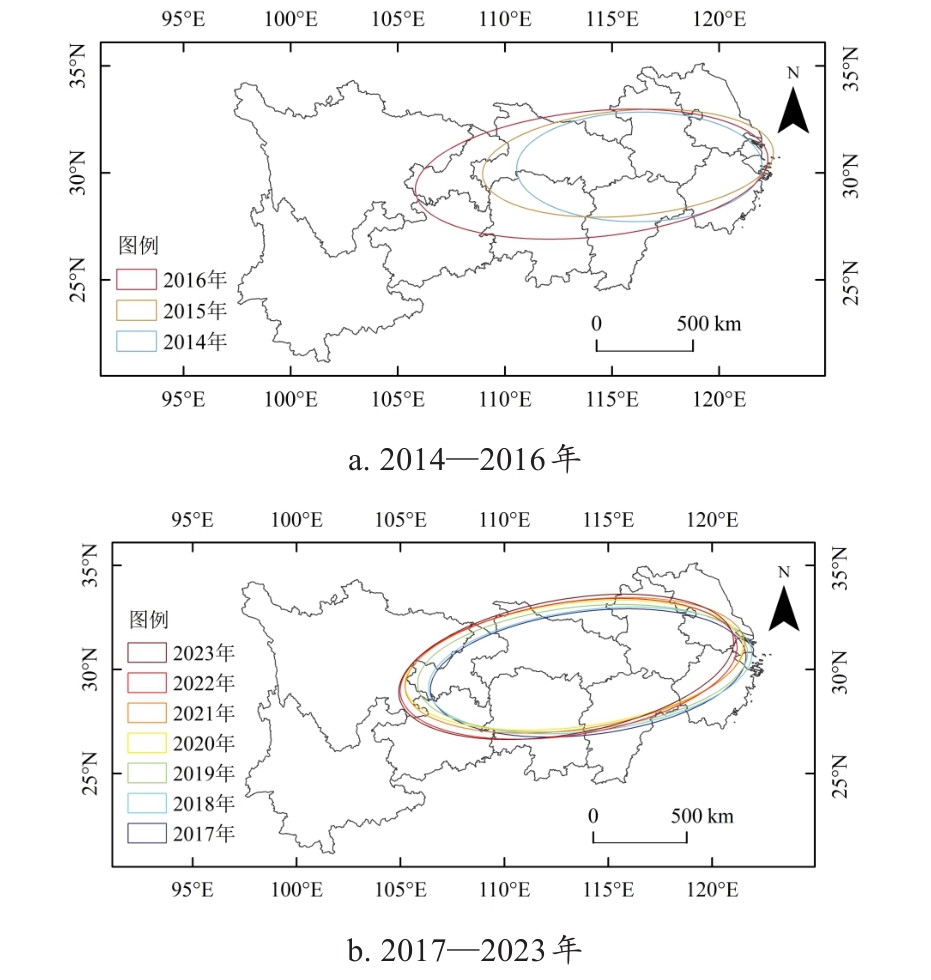

年份	中心坐标	覆盖面积/km²	方位角/（°）	扁率
2014	116°16'26.4"E，30°16'29.3"N（安徽省安庆市）	491 517.475 8	89.118 7	0.553 3
2015	115°44'34.5"E，30°26'56.0"N（湖北省黄冈市）	563 071.910 9	85.192 8	0.637 5
2016	114°02'51.1"E，29°56'09.8"N（湖北省咸宁市）	820 424.294 1	84.304 1	0.644 4
2017	114°02'02.3"E，29°49'35.7"N（湖北省咸宁市）	764 479.620 8	83.076 5	0.612 6
2018	114°07'59.1"E，29°57'00.8"N（湖北省咸宁市）	771 297.113 9	83.127 8	0.627 4
2023	112°58'25.1"E，30°07'15.6"N（湖北省荆州市）	890 615.358 1	79.796 8	0.604 7
