关键词: 油菜, 无人播种作业, 全覆盖路径, 转弯模型, 高精度地图, 漏作业率

Abstract:

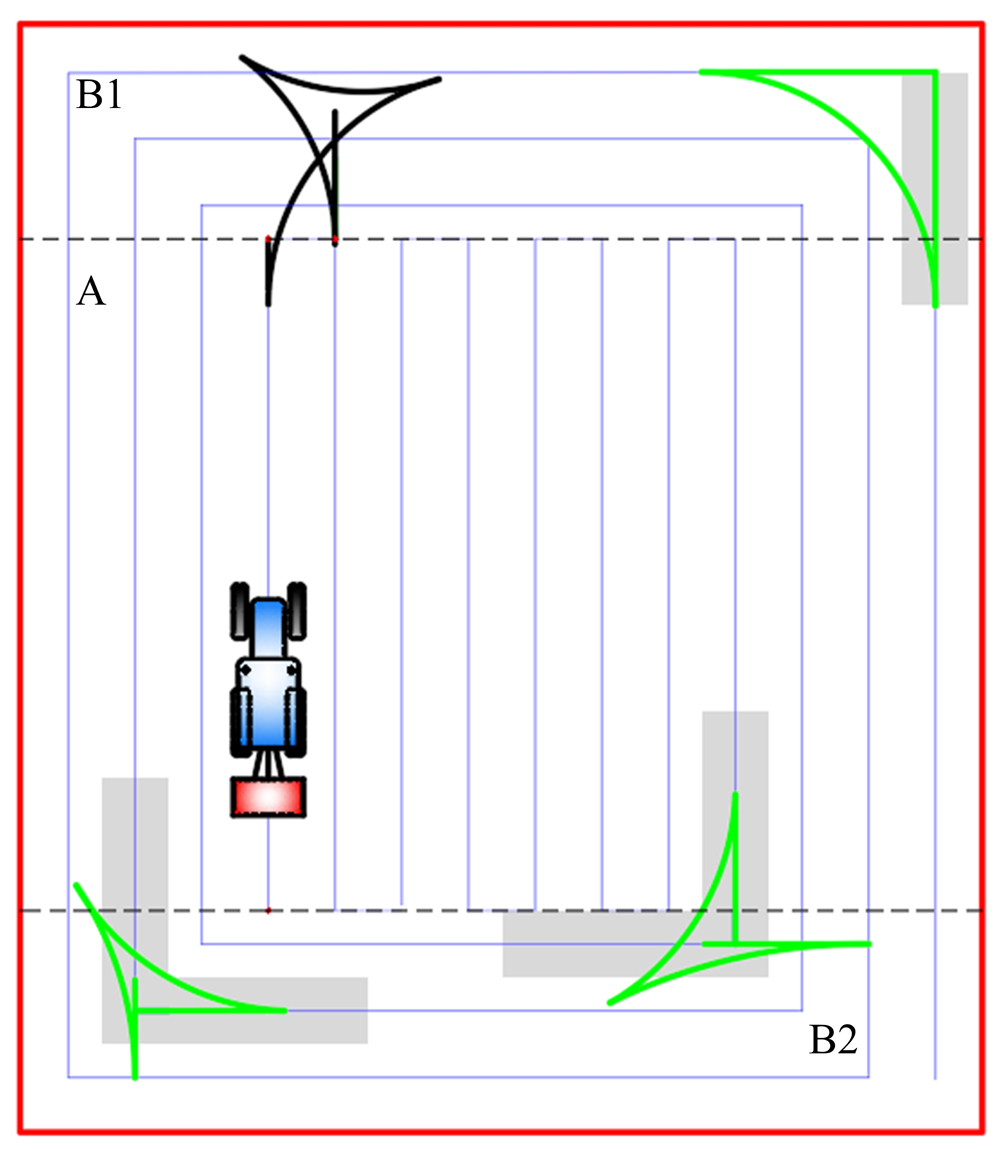

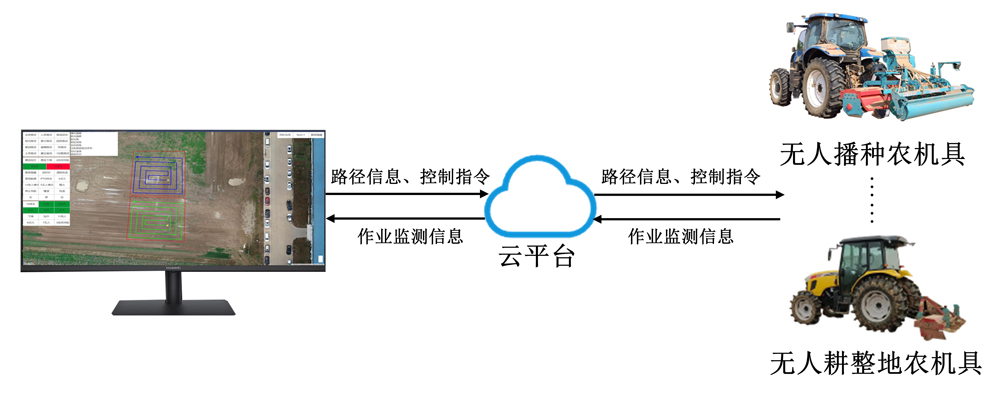

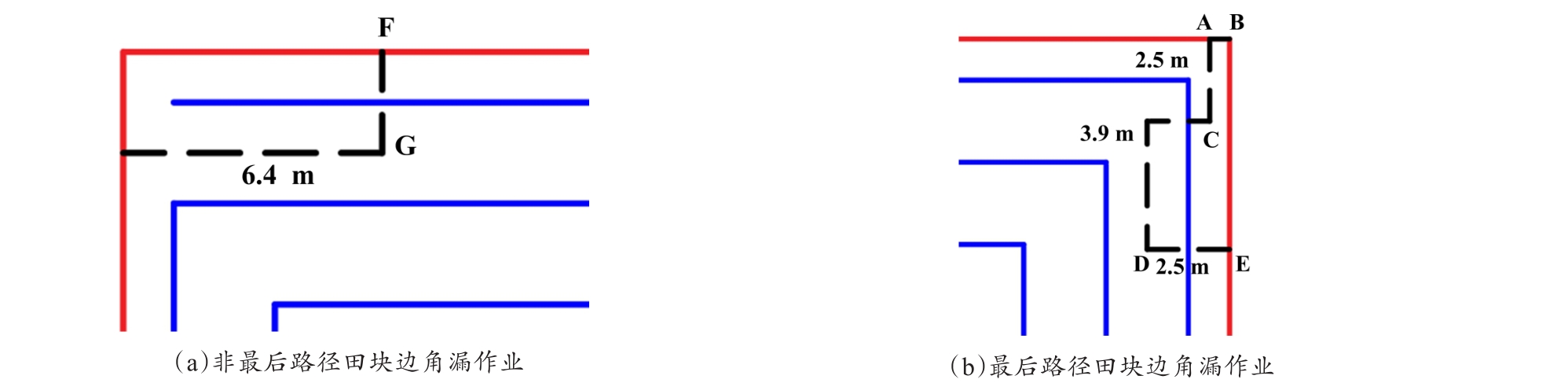

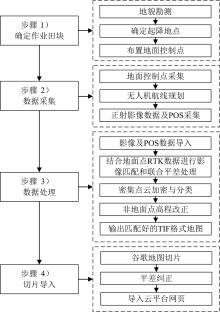

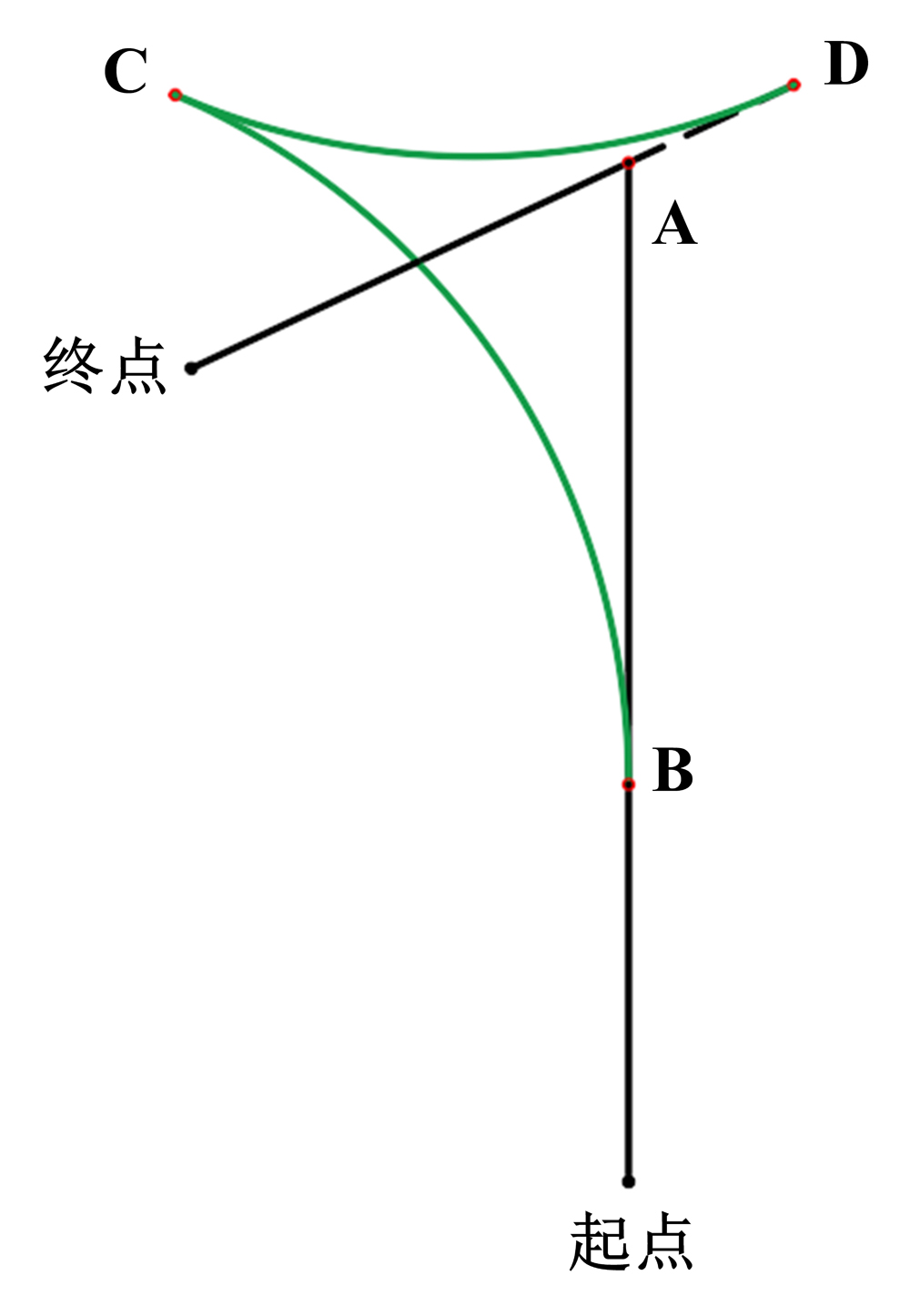

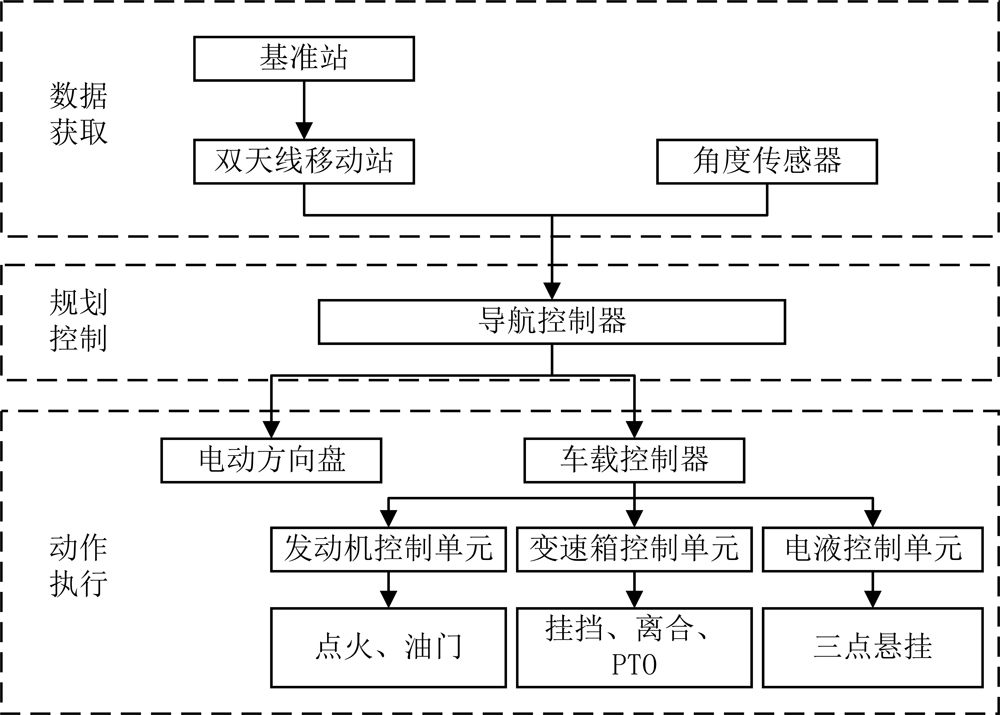

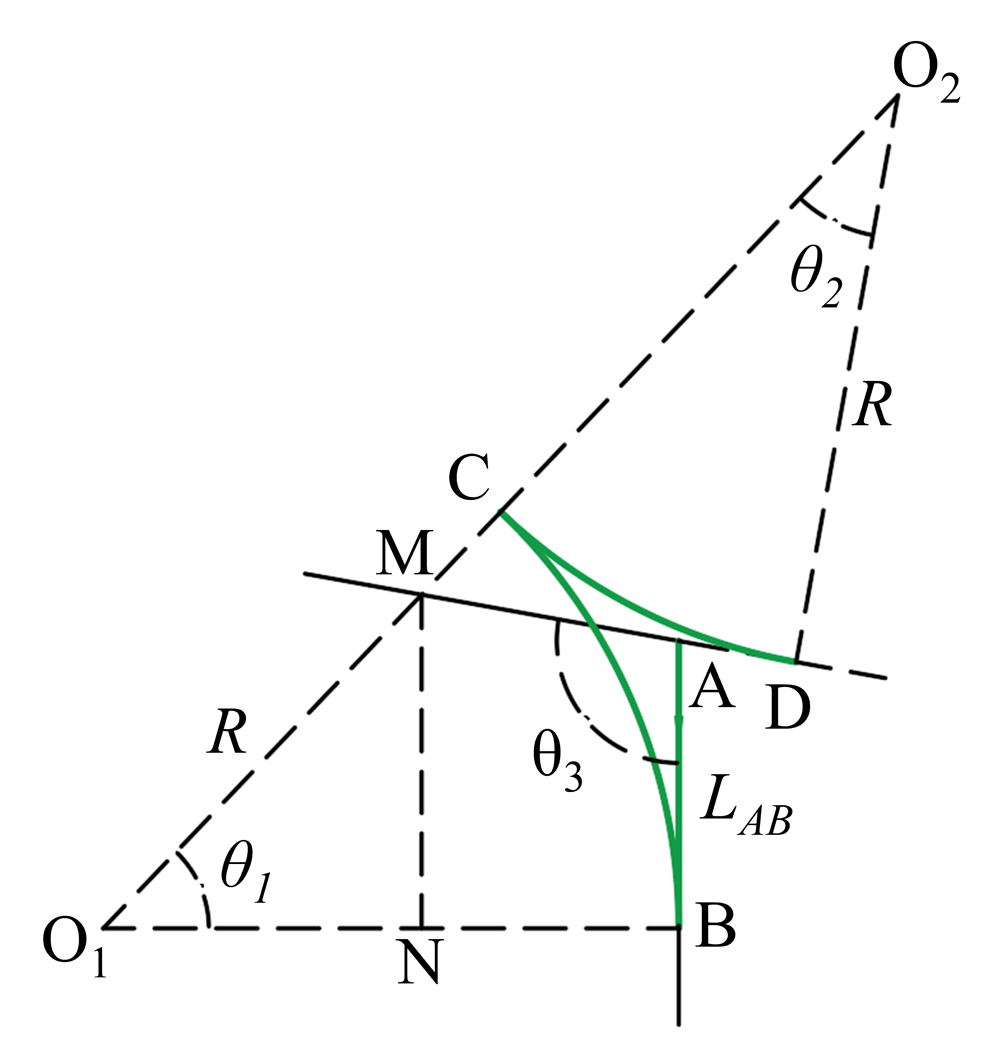

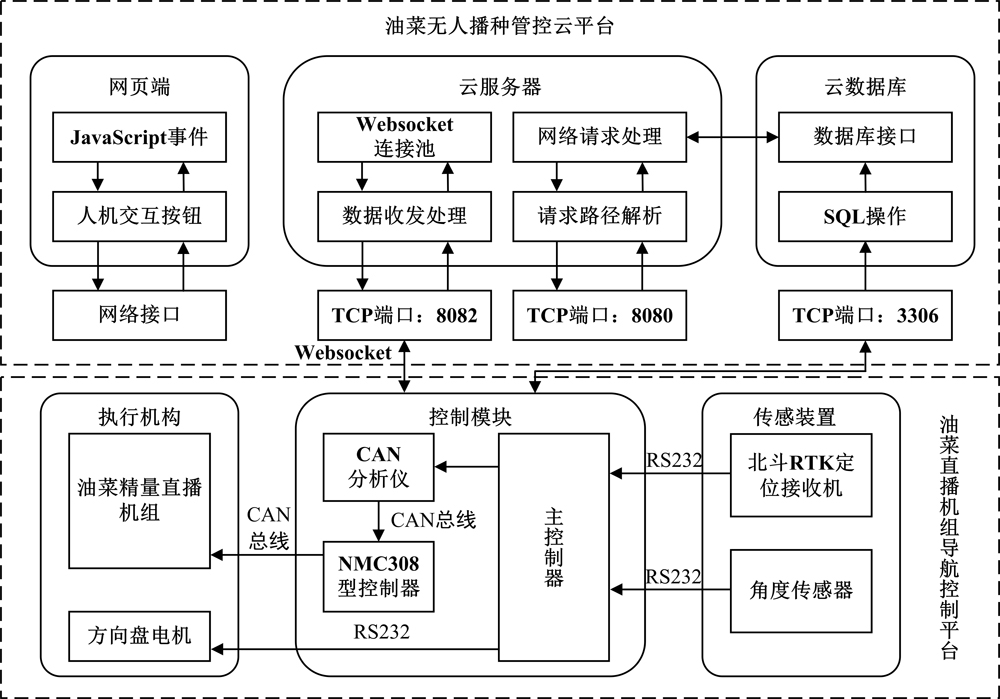

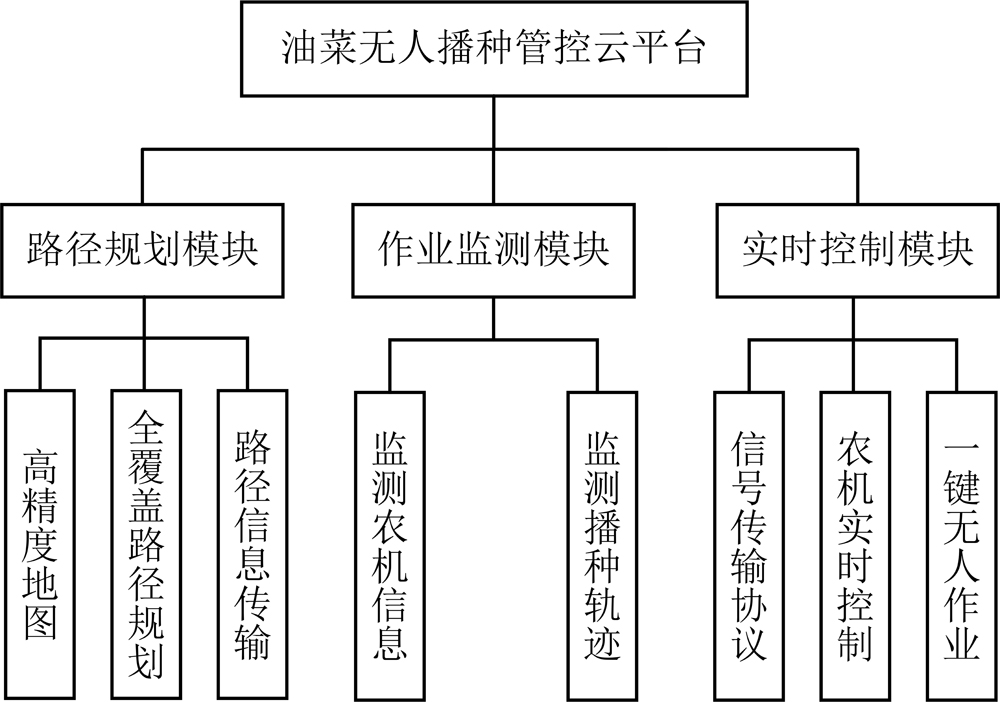

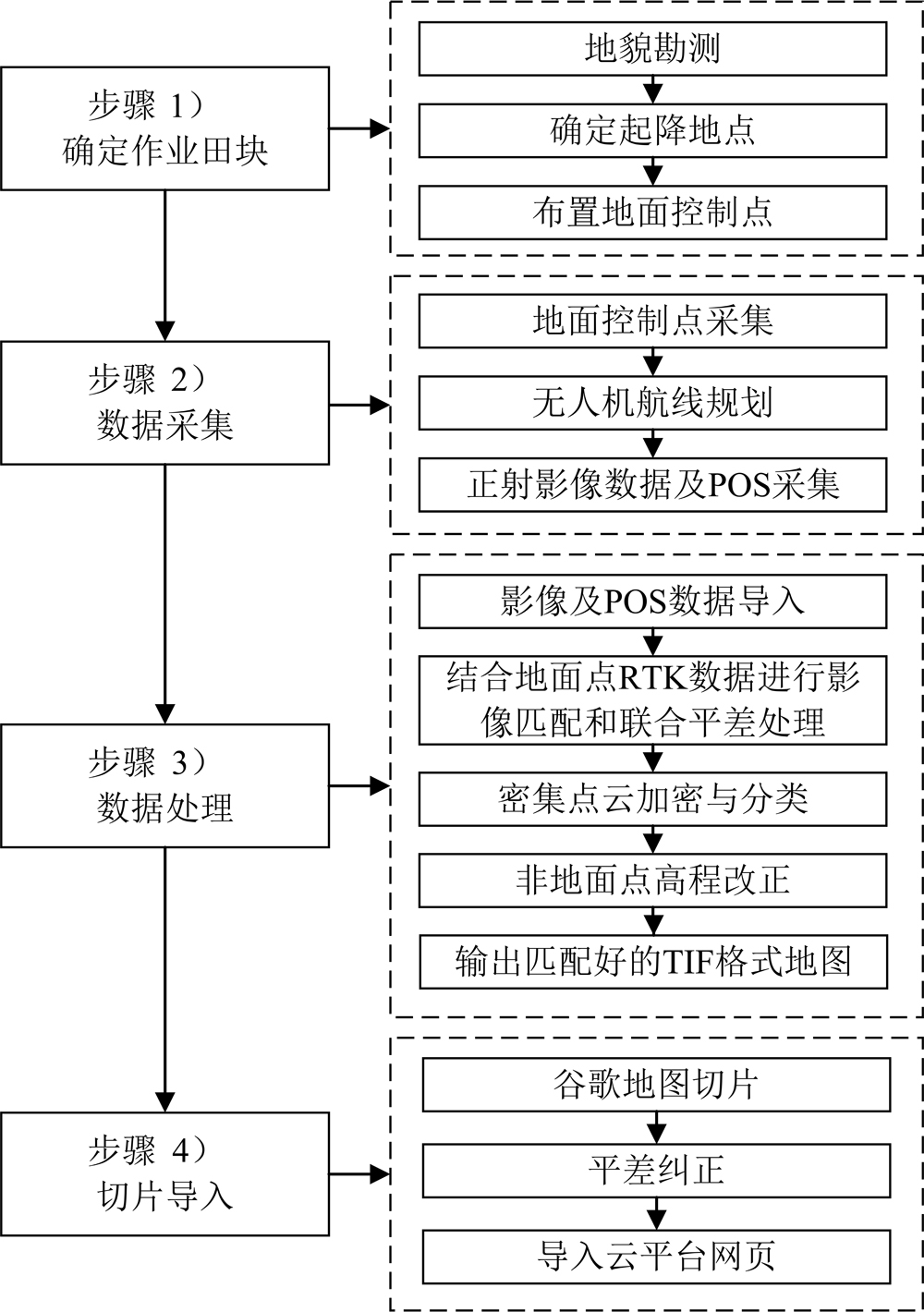

[Objective] Unmanned seeding of rapeseed is an important link to construct unmanned rapeseed farm. Aiming at solving the problems of cumbersome manual collection of small and medium-sized field boundary information in the south, the low efficiency of turnaround operation of autonomous tractor, and leaving a large leakage area at the turnaround point, this study proposes to build an unmanned rapeseed seeding operation system based on cloud-terminal high-precision maps, and to improve the efficiency of the turnaround operation and the coverage of the operation. [Methods] The system was mainly divided into two parts: the unmanned seeding control cloud platform for oilseed rape is mainly composed of a path planning module, an operation monitoring module and a real-time control module; the navigation and control platform for rapeseed live broadcasting units is mainly composed of a Case TM1404 tractor, an intelligent seeding and fertilizing machine, an angle sensor, a high-precision Beidou positioning system, an electric steering wheel, a navigation control terminal and an on-board controller terminal. The process of constructing the high-precision map was as follows: determining the operating field, laying the ground control points; collecting the positional data of the ground control points and the orthophoto data from the unmanned aerial vehicle (UAV); processing the image data and constructing the complete map; slicing the map, correcting the deviation and transmitting it to the webpage. The field boundary information was obtained through the high-precision map. The equal spacing reduction algorithm and scanning line filling algorithm was adopted, and the spiral seeding operation path outside the shuttle row was automatically generated. According to the tractor geometry and kinematics model and the size of the distance between the tractor position and the field boundary, the specific parameters of the one-back and two-cut turning model were calculated, and based on the agronomic requirements of rapeseed sowing operation, the one-back-two-cut turn operation control strategy was designed to realize the rapeseed direct seeding unit's sowing operation for the omitted operation area of the field edges and corners. The test included map accuracy test, operation area simulation test and unmanned seeding operation field test. For the map accuracy test, the test field at the edge of Lake Yezhi of Huazhong Agricultural Universit was selected as the test site, where high-precision maps were constructed, and the image and position (POS) data collected by the UAV were processed, synthesized, and sliced, and then corrected for leveling according to the actual coordinates of the correction point and the coordinates of the image. Three rectangular fields of different sizes were selected for the operation area simulation test to compare the operation area and coverage rate of the three operation modes: set row, shuttle row, and shuttle row outer spiral. The Case TM1404 tractor equipped with an intelligent seeding and fertilizer application integrated machine was used as the test platform for the unmanned seeding operation test, and data such as tracking error and operation speed were recorded in real time by software algorithms. The data such as tracking error and operation speed were recorded in real-time. After the flowering of rapeseed, a series of color images of the operation fields were obtained by aerial photography using a drone during the flowering period of rapeseed, and the color images of the operation fields were spliced together, and then the seedling and non-seedling areas were mapped using map surveying and mapping software. [Results and Discussions] The results of the map accuracy test showed that the maximum error of the high-precision map ground verification point was 3.23 cm, and the results of the operation area simulation test showed that the full-coverage path of the helix outside the shuttle row reduced the leakage rate by 18.58%-26.01% compared with that of the shuttle row and the set of row path. The results of unmanned seeding operation field test showed that the average speed of unmanned seeding operation was 1.46 m/s, the maximum lateral deviation was 7.94 cm, and the maximum average absolute deviation was 1.85 cm. The test results in field showed that, the measured field area was 1 018.61 m², and the total area of the non-growing oilseed rape area was 69.63 m², with an operating area of 948.98 m², and an operating coverage rate of 93.16%. [Conclusions] The effectiveness and feasibility of the constructed unmanned seeding operation system for rapeseed were demonstrated. This study can provide technical reference for unmanned seeding operation of rapeseed in small and medium-sized fields in the south. In the future, the unmanned seeding operation mode of rapeseed will be explored in irregular field conditions to further improve the applicability of the system.

Key words: rapeseed, unmanned seeding operation, full coverage path, turn model, high-precision map, leakage rate
