Tea Leaf Disease Diagnosis Based on Improved Lightweight U-Net3+

doi:10.12133/j.smartag.SA202507010

Abstract

Abstract:

[Objective] Leaf diseases significantly affect both the yield and quality of tea throughout the year. To address the issue of inadequate segmentation finesse in the current tea spot segmentation models, a novel diagnosis of the severity of tea spots was proposed in this research, designated as MDC-U-Net3+, to enhance segmentation accuracy on the base framework of U-Net3+. [Methods] Multi-scale feature fusion module (MSFFM) was incorporated into the backbone network of U-Net3+ to obtain feature information across multiple receptive fields of diseased spots, thereby reducing the loss of features within the encoder. Dual multi-scale attention (DMSA) was incorporated into the skip connection process to mitigate the segmentation boundary ambiguity issue. This integration facilitates the comprehensive fusion of fine-grained and coarse-grained semantic information at full scale. Furthermore, the segmented mask image was subjected to conditional random fields (CRF) to enhance the optimization of the segmentation results [Results and Discussions] The improved model MDC-U-Net3+ achieved a mean pixel accuracy (mPA) of 94.92%, accompanied by a mean Intersection over Union (mIoU) ratio of 90.9%. When compared to the mPA and mIoU of U-Net3+, MDC-U-Net3+ model showed improvements of 1.85 and 2.12 percentage points, respectively. These results illustrated a more effective segmentation performance than that achieved by other classical semantic segmentation models. [Conclusions] The methodology presented herein could provide data support for automated disease detection and precise medication, consequently reducing the losses associated with tea diseases.

Key words: disease diagnosis, semantic segmentation, U-Net3+, multi-scale feature fusion, attention mechanism, conditional random fields

CLC Number:

TP183

HU Yumeng, GUAN Feifan, XIE Dongchen, MA Ping, YU Youben, ZHOU Jie, NIE Yanming, HUANG Lüwen. Tea Leaf Disease Diagnosis Based on Improved Lightweight U-Net3+[J]. Smart Agriculture, 2026, 8(1): 15-27.

Figures/Tables 16

Fig. 1

Fig. 2

Table 1

Table 2

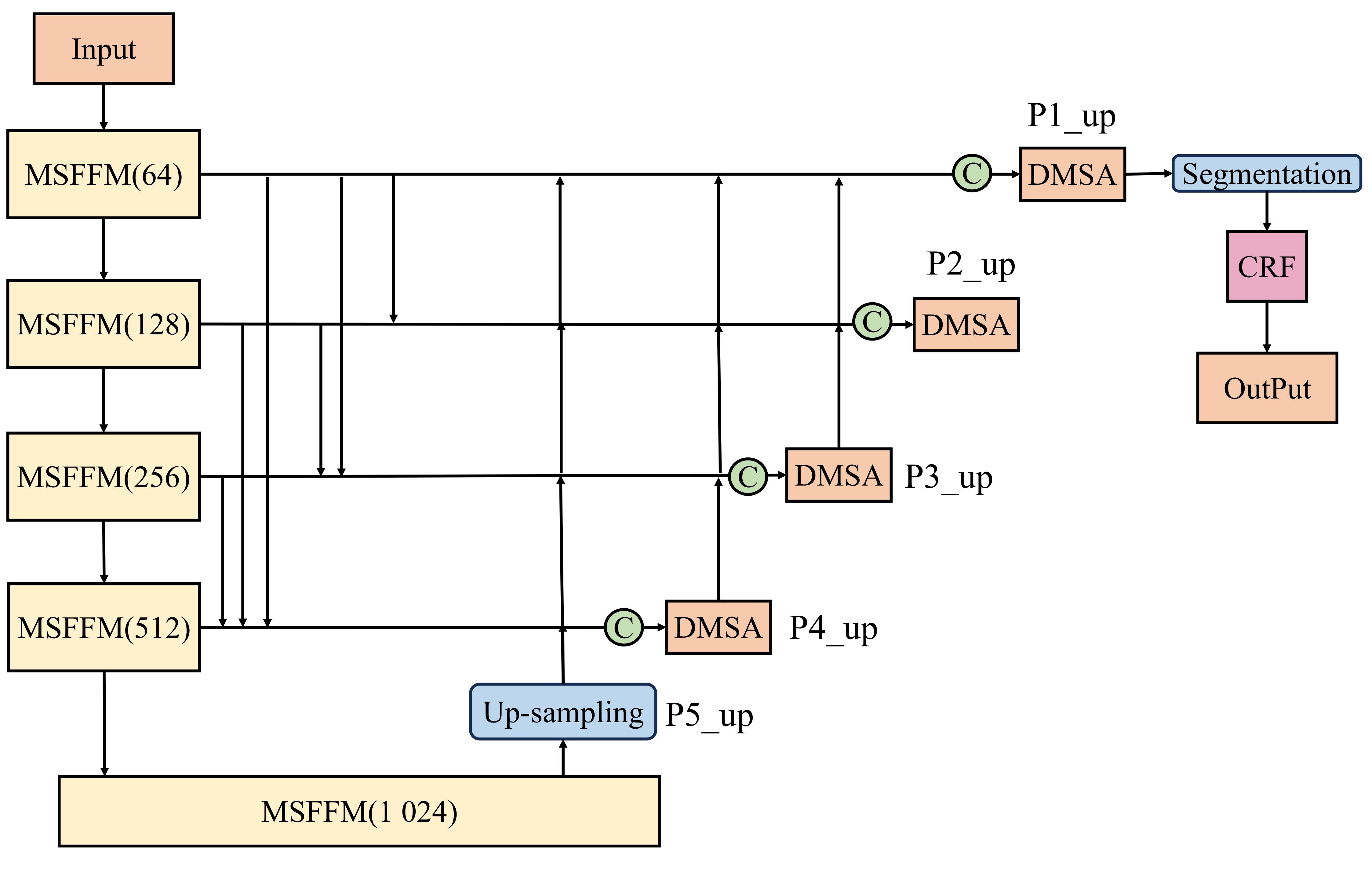

Fig. 3

Fig. 4

Fig. 5

Fig. 6

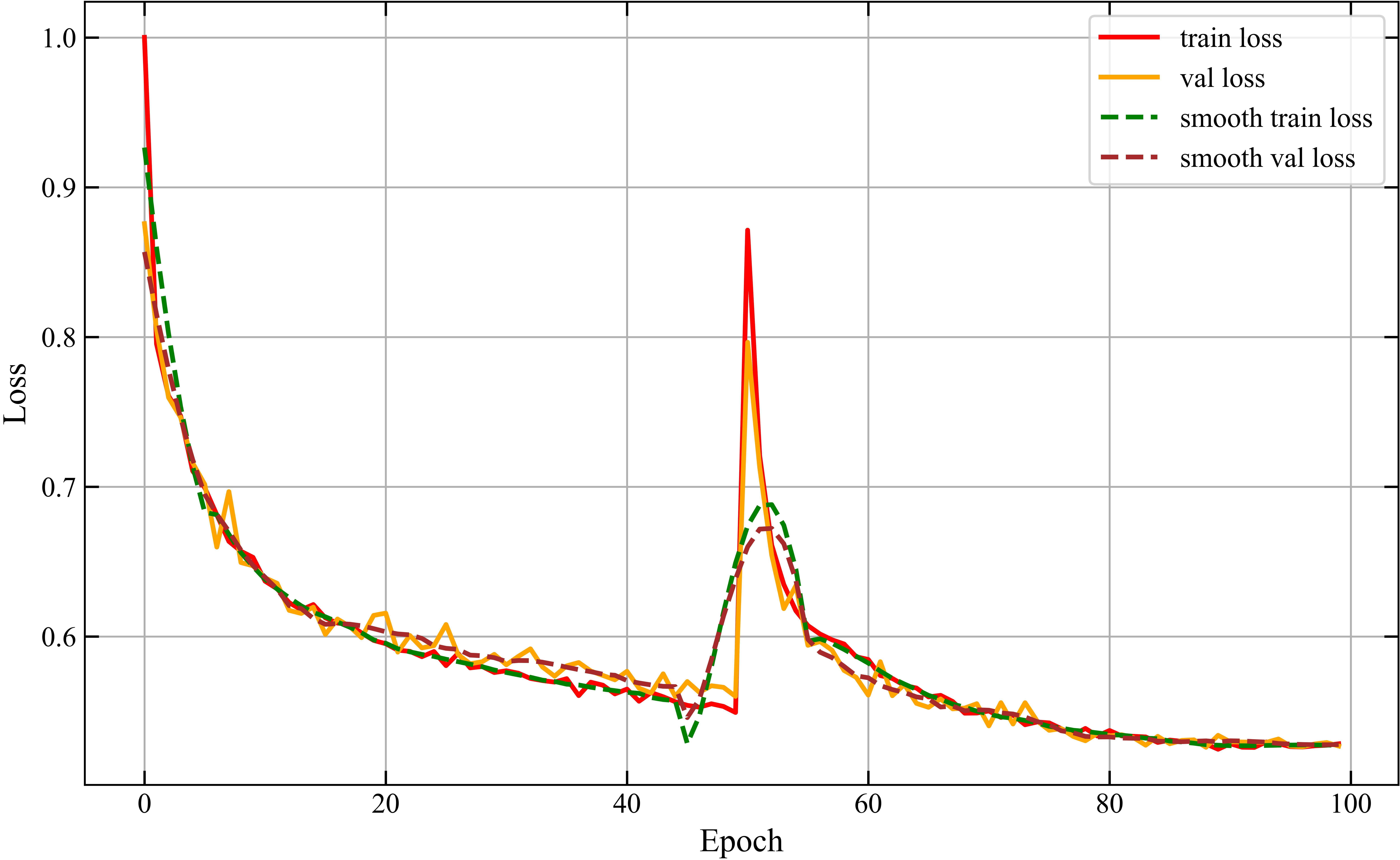

Fig. 7

Table 3

Table 4

Table 5

Fig. 8

Table 6

Fig. 9

Table 7

References 51

[1]	DING X L, LU Q, LI L P, et al. Measuring the impact of relative deprivation on tea farmers' pesticide application behavior: The case of Shaanxi, Sichuan, Zhejiang, and Anhui province, China[J]. Horticulturae, 2023, 9(3): 342.
[2]	HE M B, LI Y C, ZONG S X, et al. Life cycle assessment of carbon footprint of green tea produced by smallholder farmers in Shaanxi Province of China[J]. Agronomy, 2023, 13(2): 364.
[3]	PAYMODE A S, MALODE V B. Transfer learning for multi-crop leaf disease image classification using convolutional neural network VGG[J]. Artificial Intelligence in Agriculture, 2022, 6: 23-33.
[4]	YANG B, WANG Z L, GUO J Y, et al. Identifying plant disease and severity from leaves: A deep multitask learning framework using triple-branch Swin Transformer and deep supervision[J]. Computers and Electronics in Agriculture, 2023, 209: 107809.
[5]	SINGH A K, RAO A, CHATTOPADHYAY P, et al. Effective plant disease diagnosis using Vision Transformer trained with leafy-generative adversarial network-generated images[J]. Expert Systems with Applications, 2024, 254: 124387.
[6]	XU H, LI L F, YANG H, et al. Fine segmentation method for plant leaf disease spots based on deep learning[J]. Journal of Shenyang Agricultural University, 2025, 56(1): 92-107.
[7]	ZHOU Z M, ZHANG Y, GU Z H, et al. Deep learning approaches for object recognition in plant diseases: A review[J]. Intelligence & Robotics, 2023, 3(4): 514-537.
[8]	RITHARSON P I, RAIMOND K, MARY X A, et al. DeepRice: A deep learning and deep feature based classification of Rice leaf disease subtypes[J]. Artificial Intelligence in Agriculture, 2024, 11: 34-49.
[9]	HU G S, WAN M Z, WEI K, et al. Computer vision based method for severity estimation of tea leaf blight in natural scene images[J]. European Journal of Agronomy, 2023, 144: 126756.
[10]	NIE G, RAO H, LI Z, et al. Severity grading model for camellia oleifera anthracnose infection based on improved YOLACT[J]. Smart Agriculture, 2024, 6(3): 138-147.
[11]	NATH M, MITRA P, KUMAR D. A novel residual learning-based deep learning model integrated with attention mechanism and SVM for identifying tea plant diseases[J]. International Journal of Computers and Applications, 2023, 45(6): 471-484.
[12]	HUANG Z X, GOUDA M, YE S T, et al. Advanced deep learning algorithm for instant discriminating of tea leave stress symptoms by smartphone-based detection[J]. Plant Physiology and Biochemistry, 2024, 212: 108769.
[13]	SAJITHA P, ANDRUSHIA A D, ANAND N, et al. A review on machine learning and deep learning image-based plant disease classification for industrial farming systems[J]. Journal of Industrial Information Integration, 2024, 38: 100572.
[14]	ZHANG X X, LI F, ZHENG H Y, et al. UPFormer: U-sharped perception lightweight transformer for segmentation of field grape leaf diseases[J]. Expert Systems with Applications, 2024, 249: 123546.
[15]	ZHANG J Y, ZHANG B H, CHEN Z X, et al. A salient feature establishment tactic for cassava disease recognition[J]. Artificial Intelligence in Agriculture, 2024, 14: 115-132.
[16]	SHELHAMER E, LONG J, DARRELL T. Fully convolutional networks for semantic segmentation[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2017, 39(4): 640-651.
[17]	LI X R, ZHOU H Q, CHANG Y Q, et al. A method of apple leaf spot segmentation based on improved DeepLabV3+[C]// International Conference on Cloud Computing, Performance Computing, and Deep Learning (CCPCDL 2023). Burlingame, California, USA: SPIE, 2023: 54.
[18]	BADRINARAYANAN V, KENDALL A, CIPOLLA R. SegNet: A deep convolutional encoder-decoder architecture for image segmentation[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2017, 39(12): 2481-2495.
[19]	ZHANG S W, ZHANG C L. Modified U-Net for plant diseased leaf image segmentation[J]. Computers and Electronics in Agriculture, 2023, 204: 107511.
[20]	GONÇALVES J P, PINTO F A C, QUEIROZ D M, et al. Deep learning architectures for semantic segmentation and automatic estimation of severity of foliar symptoms caused by diseases or pests[J]. Biosystems Engineering, 2021, 210: 129-142.
[21]	LU J W, LU B B, MA W L, et al. EAIS-Former: An efficient and accurate image segmentation method for fruit leaf diseases[J]. Computers and Electronics in Agriculture, 2024, 218: 108739.
[22]	HU C, TAN L, WANG W, et al. Severity grading model for camellia oleifera anthracnose infection based on improved YOLACT[J]. Smart Agriculture, 2024, 6(5): 119-127.
[23]	ZHOU H, PENG Y T, ZHANG R P, et al. GS-DeepLabV3+: A mountain tea disease segmentation network based on improved shuffle attention and gated multidimensional feature extraction[J]. Crop Protection, 2024, 183: 106762.
[24]	CHEN T C, LI H X, CHEN J Z, et al. Detection network for multi-size and multi-target tea bud leaves in the field of view via improved YOLOv7[J]. Computers and Electronics in Agriculture, 2024, 218: 108700.
[25]	SUN Y G, WU F, GUO H P, et al. TeaDiseaseNet: Multi-scale self-attentive tea disease detection[J]. Frontiers in Plant Science, 2023, 14: 1257212.
[26]	HU G S, WANG H Y, ZHANG Y, et al. Detection and severity analysis of tea leaf blight based on deep learning[J]. Computers & Electrical Engineering, 2021, 90: 107023.
[27]	HU G S, WEI K, ZHANG Y, et al. Estimation of tea leaf blight severity in natural scene images[J]. Precision Agriculture, 2021, 22(4): 1239-1262.
[28]	SHWETHA V, BHAGWAT A, LAXMI V. LeafSpotNet: A deep learning framework for detecting leaf spot disease in jasmine plants[J]. Artificial Intelligence in Agriculture, 2024, 12: 1-18.
[29]	GUI Z Y, CHEN J N, LI Y, et al. A lightweight tea bud detection model based on YOLOv5[J]. Computers and Electronics in Agriculture, 2023, 205: 107636.
[30]	WU Y X, CHEN J N, WU S K, et al. An improved YOLOv7 network using RGB-D multi-modal feature fusion for tea shoots detection[J]. Computers and Electronics in Agriculture, 2024, 216: 108541.
[31]	MACDONALD W, SARI Y A, PAHLEVANI M. Grow-light smart monitoring system leveraging lightweight deep learning for plant disease classification[J]. Artificial Intelligence in Agriculture, 2024, 12: 44-56.
[32]	HUANG H M, LIN L F, TONG R F, et al. UNet 3+: A full-scale connected UNet for medical image segmentation[C]// ICASSP 2020 - 2020 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP). Piscataway, New Jersey, USA: IEEE, 2020: 1055-1059.
[33]	AMRIT P, BARANWAL N, SINGH K N, et al. ConvNet-HIDE: Deep-learning-based dual watermarking for health-care images[J]. IEEE MultiMedia, 2024, 31(3): 78-87.
[34]	HAN Z M, JIAN M W, WANG G G. ConvUNeXt: An efficient convolution neural network for medical image segmentation[J]. Knowledge-Based Systems, 2022, 253: 109512.
[35]	ARDIMENTO P, AVERSANO L, BERNARDI M L, et al. Evo-GUNet3++: Using evolutionary algorithms to train UNet-based architectures for efficient 3D lung cancer detection[J]. Applied Soft Computing, 2023, 144: 110465.
[36]	GOKULKANNAN K, MOHANAPRAKASH T A, DAFNIROSE J, et al. Multiscale adaptive and attention-dilated convolutional neural network for efficient leukemia detection model with multiscale trans-res-Unet3+-based segmentation network[J]. Biomedical Signal Processing and Control, 2024, 90: 105847.
[37]	TIAN L L, ZHANG H X, LIU B, et al. VMF-SSD: A novel V-space based multi-scale feature fusion SSD for apple leaf disease detection[J]. IEEE/ACM Transactions on Computational Biology and Bioinformatics, 2023, 20(3): 2016-2028.
[38]	HUA Z W, QI L Z, DU D M, et al. Dual attention based multi-scale feature fusion network for indoor RGBD semantic segmentation[C]// 2022 26th International Conference on Pattern Recognition (ICPR). Piscataway, New Jersey, USA: IEEE, 2022: 3639-3644.
[39]	PENG P, WANG X Q, LI WP. Tea plant disease and pest forecasting and control techniques[M]. Beijing: China Agriculture Press, 2013.
[40]	RONNEBERGER O, FISCHER P, BROX T. U-Net: Convolutional networks for biomedical image segmentation[C]// Medical Image Computing and Computer-Assisted Intervention-MICCAI 2015. Cham, Germany: Springer, 2015: 234-241.
[41]	YI X M, ZHOU Y, WU P, et al. U-Net with coordinate attention and VGGNet: A grape image segmentation algorithm based on fusion pyramid pooling and the dual-attention mechanism[J]. Agronomy, 2024, 14(5): 925.
[42]	ZHOU Z W, RAHMAN SIDDIQUEE M M, TAJBAKHSH N, et al. UNet++: A nested U-Net architecture for medical image segmentation[C]// Deep Learning in Medical Image Analysis and Multimodal Learning for Clinical Decision Support. Cham, Germany: Springer, 2018: 3-11.
[43]	CHOUHAN S S, SINGH U P, JAIN S. Web facilitated anthracnose disease segmentation from the leaf of mango tree using radial basis function (RBF) neural network[J]. Wireless Personal Communications, 2020, 113(2): 1279-1296.
[44]	SAGAR A. DMSANet: Dual multi scale attention network[C]// Image Analysis and Processing-ICIAP 2022. Cham, Germany: Springer, 2022: 633-645.
[45]	HU G S, WU H Y, ZHANG Y, et al. A low shot learning method for tea leaf's disease identification[J]. Computers and Electronics in Agriculture, 2019, 163: 104852.
[46]	MAHESWARI P, RAJA P, HOANG V T. Intelligent yield estimation for tomato crop using SegNet with VGG19 architecture[J]. Scientific Reports, 2022, 12: 13601.
[47]	JI M M, WU Z B. Automatic detection and severity analysis of grape black measles disease based on deep learning and fuzzy logic[J]. Computers and Electronics in Agriculture, 2022, 193: 106718.
[48]	WANG X M, WU Z L, FANG C. TeaPoseNet: A deep neural network for tea leaf pose recognition[J]. Computers and Electronics in Agriculture, 2024, 225: 109278.
[49]	LI Y E, WANG Y, XU D Y, et al. An improved mask RCNN model for segmentation of 'kyoho' (Vitis labruscana) grape bunch and detection of its maturity level[J]. Agriculture, 2023, 13(4): 914.
[50]	LI K Y, ZHANG L X, LI B, et al. Attention-optimized DeepLab V3+ for automatic estimation of cucumber disease severity[J]. Plant Methods, 2022, 18(1): 109.
[51]	CHEN S, SONG Y Y, SU J Y, et al. Segmentation of field grape bunches via an improved pyramid scene parsing network[J]. International Journal of Agricultural and Biological Engineering, 2021, 14(6): 185-194.

Disease types	Pre-augmentation	Post-augmentation
Tea anthracnose （Gloeosporium theae-sinensis Miyake）	428	2 568
Tea leaf blight （Colletotrichum camelliae Massee）	375	2 250
Tea red scab （Cercospora theae BreadaDe Haan）	486	2 916
Tea blister blight （Exobasidium vexans Massee）	469	2 814
Tea red leaf spot （Phyllosticta theicola Petch）	435	2 610

Disease severity	Classification standard of leaf
Disease severity	Area of leaf spots	Number of leaf spots
0	none	0
1	less than 25% of the leaf area	1
2	25% to 50% of the leaf area	2
3	50% to 75% of the leaf area	3
4	more than 75% of the leaf area	4

Dataset division ratios	mPA/%	mIoU/%	Precision/%	Dice/%
8∶1∶1	93.73	89.20	94.63	93.78
7∶2∶1	94.20	90.26	95.28	94.29
7∶1∶2	94.90	90.88	95.24	94.56
6∶2∶2	94.92	90.90	95.24	94.58

Backbone network	mPA/%	mIoU/%
VGG16	93.35	88.84
VGG19	92.71	89.04
ResNet50	93.07	88.78
ResNet101	93.69	88.92
5-layer MSFFM	94.29	89.28

Model	mPA/%	mIoU/%	Precision/%	Dice/%	Frame rate/（f/s）	Average inference time/ms	Model size/MB
DeepLab V3+	88.59	84.38	94.67	89.85	22.476 2	44.898 6	10.987 4
PSPNet	91.91	84.81	86.71	88.78	9.601 5	44.499 6	9.601 5
U-Net	92.50	86.71	92.55	91.50	24.568 7	38.632 2	95.031 1
U-Net3+	93.07	88.78	94.59	92.96	20.633 6	48.576 1	143.031 8
MDC-U-Net3+	94.92	90.90	95.24	94.58	14.173 4	68.313 2	308.483 8
